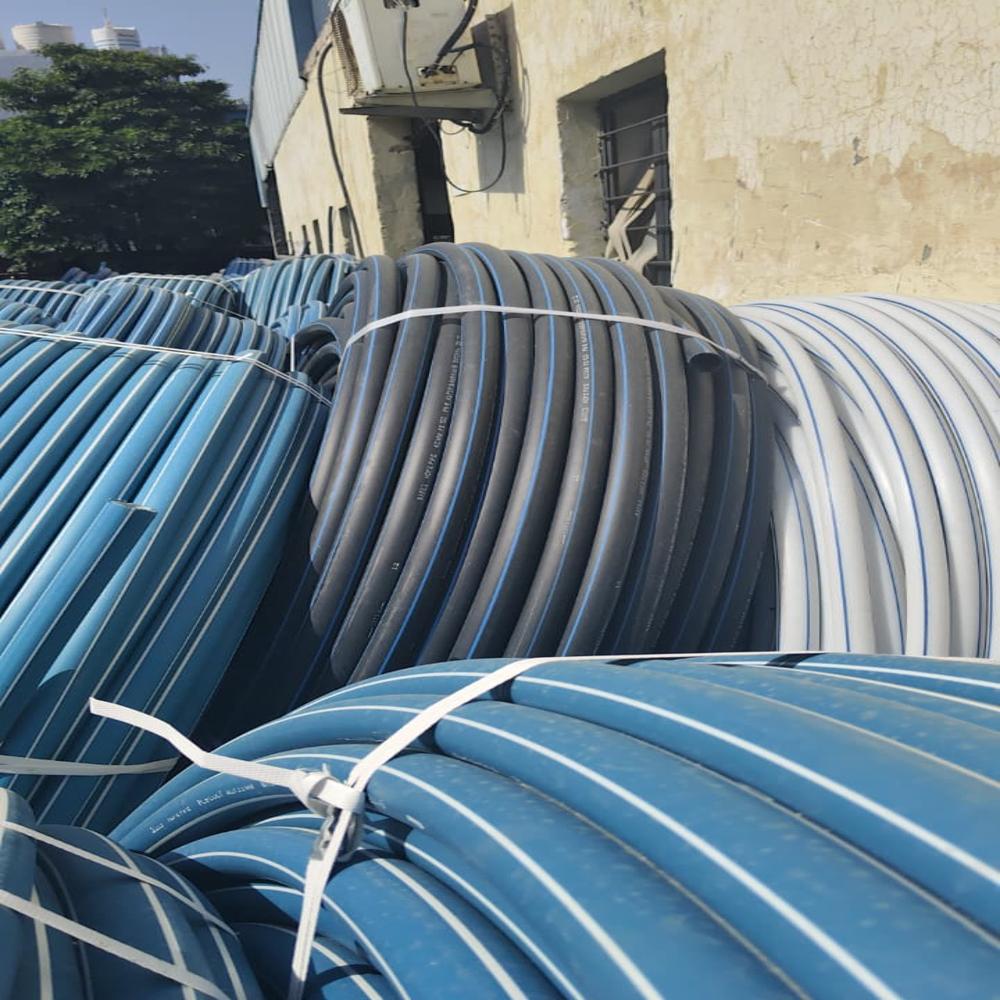

Send InquiryHDPE Duct
Price 35.0 INR/ Piece
MOQ : 1000 Pieces
HDPE Duct Specification
- Features
- High flexibility, UV resistant, Chemical resistant, Corrosion free, Smooth inner surface, Available in multiple colors
- Operating Temperature
- -20C to +60C
- Mounting Type
- Underground, Buried, Duct bank installation, Direct burial
- Model
- Standard and custom variants available
- Connectivity Type
- Duct for cable laying
- Interface Type
- Suitable for couplers, End plugs, Sealing solutions
- Range
- From 16mm to 120mm OD
- Size
- 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 75mm, 90mm, 110mm, 120mm OD
- Shelf Life
- Minimum 25 years under normal operating conditions
- Product Type
- Duct
- Application
- For installation in the field dirt trenches
- Dimension (L*W*H)
- Available in various diameters (16mm to 120mm); length as per requirement (standard 6m or 500m coils)
- Material
- HDPE
- Weight
- Varies by diameter and length; approximately 0.09 to 3.5 kg/m
- Capacity
- Supports single/multiple cable feeding
- Inner Surface
- Silicon coated (on request) for easy cable pulling
- Environmental Compatibility
- Non-toxic, Recyclable, Resistant to rodents & micro-organisms
- Tensile Strength
- High tensile strength for cable pulling
- Electrical Insulation
- Excellent insulating properties
- Pressure Rating
- 4 to 16 bar as per specifications
- Jointing Method
- Butt fusion, Electrofusion, Push-fit couplers
- Bend Radius
- Minimum 10 times outer diameter
- Color Options
- Orange, Blue, Red, Yellow, Green, Black, White, Customized
- Crush Resistance
- High resistance to deformation
HDPE Duct Trade Information
- Minimum Order Quantity
- 1000 Pieces
- Payment Terms
- Cash in Advance (CID), Cash Advance (CA)
- Supply Ability
- 1000 Pieces Per Day
- Delivery Time
- 2-15 Days
- Main Export Market(s)
- Western Europe, Australia, North America, Eastern Europe, Middle East, Central America, South America, Asia, Africa
- Main Domestic Market
- All India
About HDPE Duct
For a limited time, experience a price cut on our first-string HDPE Ducts, engineered for remarkable performance and optimum cable protection. Reserve yours in a spectrum of vibrant colors-Orange, Blue, Red, Yellow, Green, Black, White, or customized variants. With high tensile strength and impressive crush resistance, these ducts excel in electrical insulation and environmental compatibility while offering a resilient, smooth inner surface (with silicon coating on request). Adaptable for multiple installation methods, our HDPE Ducts ensure durability, UV resistance, and easy cable feeding across diverse project applications.
Wide-Ranging Applications for HDPE Duct
Our HDPE Duct is extensively utilized as a robust protective conduit in underground, buried, and duct bank installations. Used for routing and safeguarding fiber optic and electrical cables, these ducts are highly valued in telecom networks, electrical substations, and utilities infrastructure. Suitable for direct burial or field dirt trenches, they demonstrate exceptional resistance against chemicals and corrosion, making them a preferred choice for both indoor and outdoor environments requiring dependable cable management solutions.
Sample Availability, Export Markets, and Supply Information
Obtain a sample of our HDPE Duct before confirming your order. We cater to leading export markets such as Asia, Africa, the Middle East, and Europe, facilitating reliable bulk shipments. List price and detailed quotations can be provided upon request, ensuring transparency and tailored solutions for large-scale projects. With robust supply ability and efficient logistics, our products are delivered promptly to distributors, exporters, and project sites worldwide.
Wide-Ranging Applications for HDPE Duct
Our HDPE Duct is extensively utilized as a robust protective conduit in underground, buried, and duct bank installations. Used for routing and safeguarding fiber optic and electrical cables, these ducts are highly valued in telecom networks, electrical substations, and utilities infrastructure. Suitable for direct burial or field dirt trenches, they demonstrate exceptional resistance against chemicals and corrosion, making them a preferred choice for both indoor and outdoor environments requiring dependable cable management solutions.
Sample Availability, Export Markets, and Supply Information
Obtain a sample of our HDPE Duct before confirming your order. We cater to leading export markets such as Asia, Africa, the Middle East, and Europe, facilitating reliable bulk shipments. List price and detailed quotations can be provided upon request, ensuring transparency and tailored solutions for large-scale projects. With robust supply ability and efficient logistics, our products are delivered promptly to distributors, exporters, and project sites worldwide.
FAQ's of HDPE Duct:
Q: How can I reserve HDPE Ducts in specific sizes and colors?
A: You can reserve your HDPE Ducts by specifying your required diameter, length, and preferred colors from our available or custom options during the inquiry or quotation process.Q: What installation methods are supported by the HDPE Duct?
A: Our HDPE Ducts accommodate various jointing methods, including butt fusion, electrofusion, and push-fit couplers, making them adaptable for multiple installation environments.Q: When should I choose silicon-coated inner surfaces for these ducts?
A: A silicon-coated inner surface is ideal for instances where frictionless cable pulling is necessary, reducing cable installation time and minimizing the risk of damage.Q: Where can these HDPE Ducts be installed?
A: These ducts are designed for underground, buried, and duct bank installations-suitable for direct burial in dirt trenches, or urban and industrial infrastructure applications.Q: What are the main benefits of using your HDPE Ducts for cable management?
A: Our HDPE Ducts provide high flexibility, durability, electrical insulation, and resistance to UV, chemicals, rodents, and micro-organisms, ensuring optimum protection for your cables over an extended service life.
