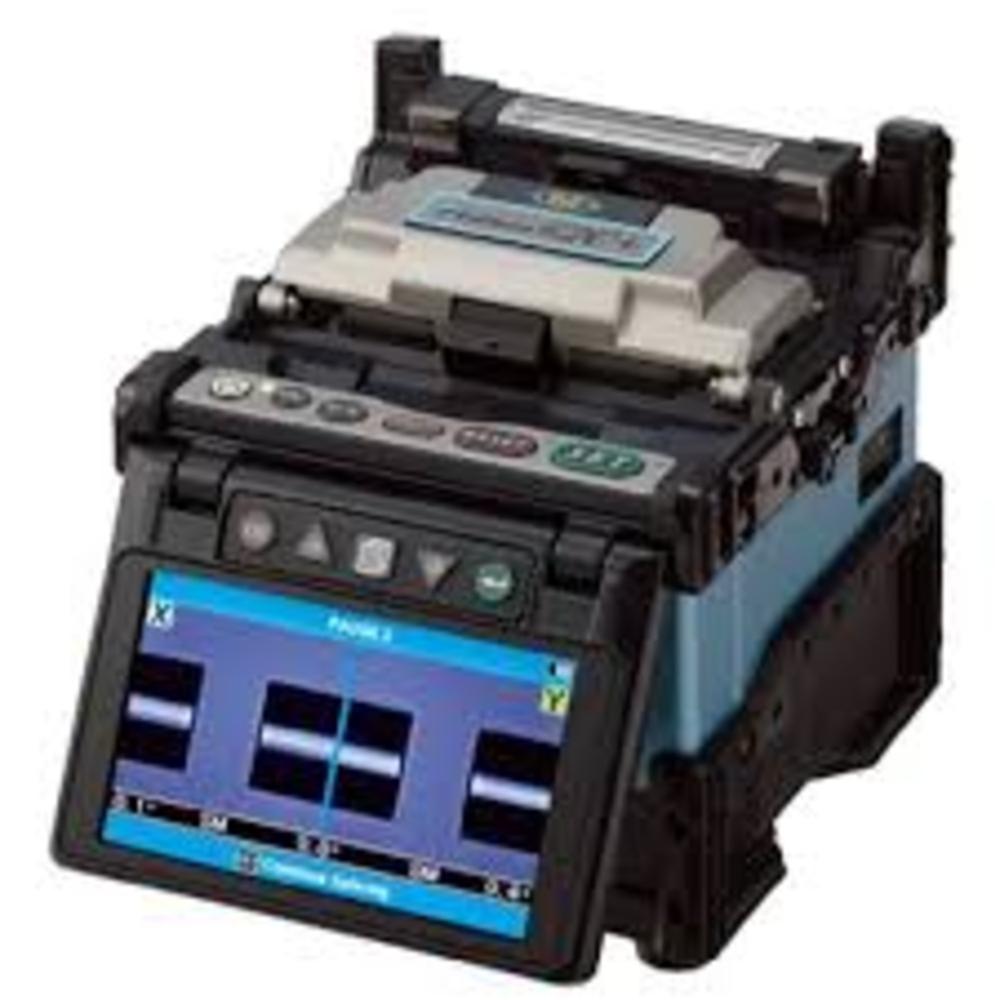

fujikura 62c

Name: fujikura 62c
Brand: AARES TELECOM PVT. LTD.
Price: 195000.0 INR
Availability: InStock

Price 195000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

fujikura 62c Specification

Connectivity Type
USB, Bluetooth

Battery Backup
Up to 200 splices/heat cycles per charge

Power Supply
DC 15 V (with AC adapter)

Size
Compact

Features
Core alignment, 5-inch TFT LCD monitor, fast splicing, real-time arc calibration

Model
Fujikura 62C

Mounting Type
Portable / Handheld

Range
Standard optical fiber range

Operating Temperature
-10C to +50C

Interface Type
Touchscreen, Button panel

Product Type
Core Alignment Fusion Splicer

Application
Fiber optic cable fusion splicing

Dimension (L*W*H)
131 mm 201 mm 79 mm (with battery)

Material
Rugged plastic and metal construction

Weight
2.3 kg (with battery)

Capacity
200 splices per battery charge

Coverage Area
Suitable for indoor and outdoor fiber networks

Alignment Method
Core Alignment

Monitor
4.5-inch color LCD touch screen

Storage Capacity
Up to 2000 splice results

Electrode Life
Up to 5000 splices (replaceable)

Splice Time
6 seconds (quick mode)

Fiber Types
SM (ITU-T G.652 & G.657), MM (G.651), DS (G.653), NZDS (G.655)

Heating Time
15 seconds (typical)

About fujikura 62c

Fujikura 62C+ Short Description

The Fujikura 62C+ is a compact, rugged core-alignment optical fiber fusion splicer designed for FTTH, telecom, and CATV network installations. It delivers fast, accurate fiber splicing with automatic splice and heating functions, a durable shock-resistant design, and a rechargeable battery capable of up to 200 splice-and-heat cycles per charge. It is built for reliable field performance and high productivity. (Satvision)

Precision Splicing Performance

With ultra-low splice losses, the Fujikura 62C ensures exceptional signal integrity for standard optical fibers. Advanced core alignment and real-time arc calibration deliver reliable and consistent results, catering to the demanding requirements of modern fiber optic networks.

User-Friendly Operation

This fusion splicer features a 5-inch color TFT LCD monitor and intuitive touchscreen interface, complemented by traditional button controls. Operators benefit from straightforward setup and monitoring, making high-quality splicing accessible for both experienced and new technicians.

Rugged and Portable Design

Engineered for diverse environments, the Fujikura 62C's rugged, compact body offers IP52-rated resistance to dust, water, and shocks. Its lightweight build, practical dimensions, and up to 200 splices per charge support fieldwork where both portability and durability are essential.

FAQ's of fujikura 62c:

Q: How do I operate the Fujikura 62C for fiber optic splicing?

A: To operate the Fujikura 62C, turn on the device, select your fiber type on the touchscreen interface, and insert prepared fibers as guided on the LCD monitor. The machine's core alignment system will ensure precise splicing, and a typical splicing cycle takes around 9 seconds in SM Fast mode.

Q: What types of fibers can I splice with the Fujikura 62C?

A: The Fujikura 62C accommodates SM (G.652/G.657), MM (G.651), DS (G.653), and NZDS (G.655) fibers, making it versatile for a wide array of network installation and maintenance projects.

Q: When should I replace the electrodes on the Fujikura 62C?

A: Electrode replacement is recommended after approximately 5,000 splices to maintain splice quality and device performance. The splicer can notify you when maintenance is due.

Q: Where can the Fujikura 62C be used?

A: Thanks to its IP52 rating and rugged build, the Fujikura 62C is suitable for both indoor data centers and outdoor installations. Its portable design makes it ideal for use on job sites, in fieldwork, and network maintenance tasks.

Q: What is the process for exporting splicing data from the Fujikura 62C?

A: You can export splicing results via the built-in USB port. Simply connect a USB storage device, access the data management function on the LCD monitor, and transfer up to 2000 stored splice records.

Q: How long does the battery last during field operations?

A: Each battery charge supports up to 200 splicing and heat cycles, maximizing efficiency during extended field deployments without frequent charging interruptions.

Q: What benefits does the core alignment feature provide?

A: The core alignment method significantly reduces splice losses, ensuring better signal transmission and long-term reliability for high-performance fiber optic networks.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in Splicing Machine Category

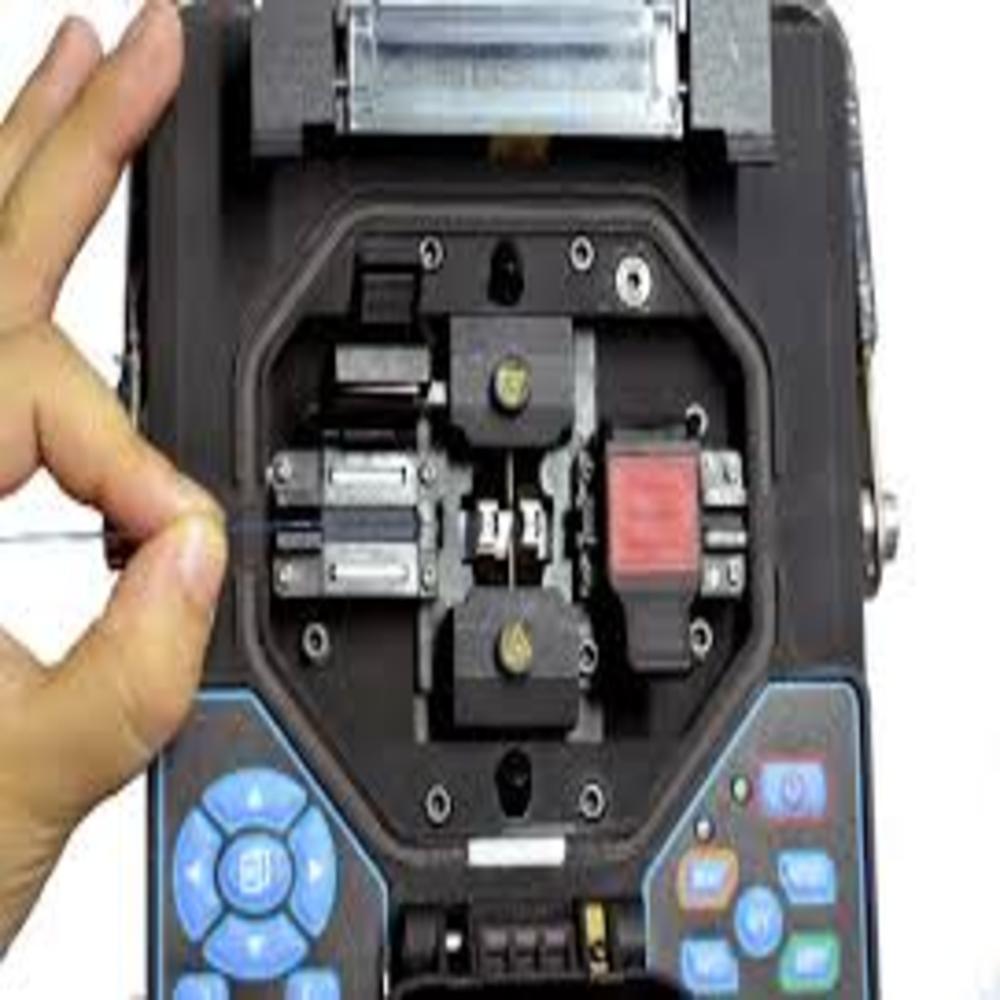

Optical Fiber Splicing Machine
